Indikator INDIKATOR DICKSON - PRINTICATOR 1182

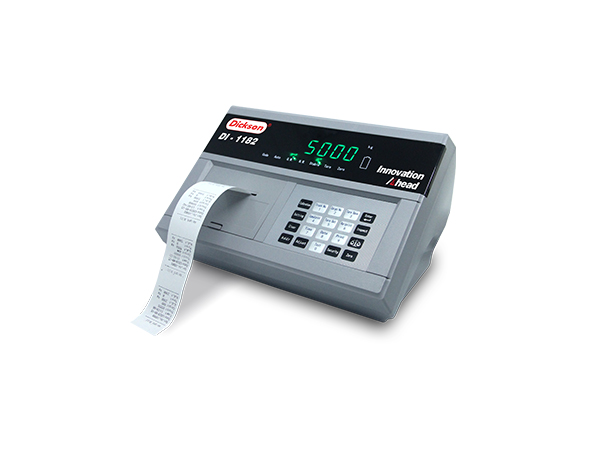

DICKSON - PRINTICATOR-1182 adalah sebuah jenis indikator timbangan yang biasanya digunakan pada unit timbangan jembatan, dengan fitur sebagai berikut  :

• • Accuracy: Class III
• • Display:
•  - 7 bits VFD, font height 0.8 inch, 7 status indications
•  - Division 1/2/5/10/20/50/100 optional
• • Screen Display Interface:
•  - Transmission Mode: Serial sending signal / current loop / RS232 / Baud Rate: 600bps
• • Print Interface: Standart parallel sending interface, able to connect with selected printer
• • Serial Communication Interface:
•  - RS232
•  - Baud Rate: 600/1200/4822/9600
•  - Distance of Transmission: RS232 output, ≤20meters
• • Power Supply:
•  - AC Power: AC 220V (-20%~+10%); 50HZ (-2%~+2%)
• • Work Condition:
•  - Working temperature: 15°C--40°C
•  - Storage and transportation temperature: -15°C -- 55°C
•  - Relative humidity: ≤85%RH
•  - Warp-up time: 15minutes
• • Dimensions(mm): 330x190x170

Download Brosur : Klik disini
